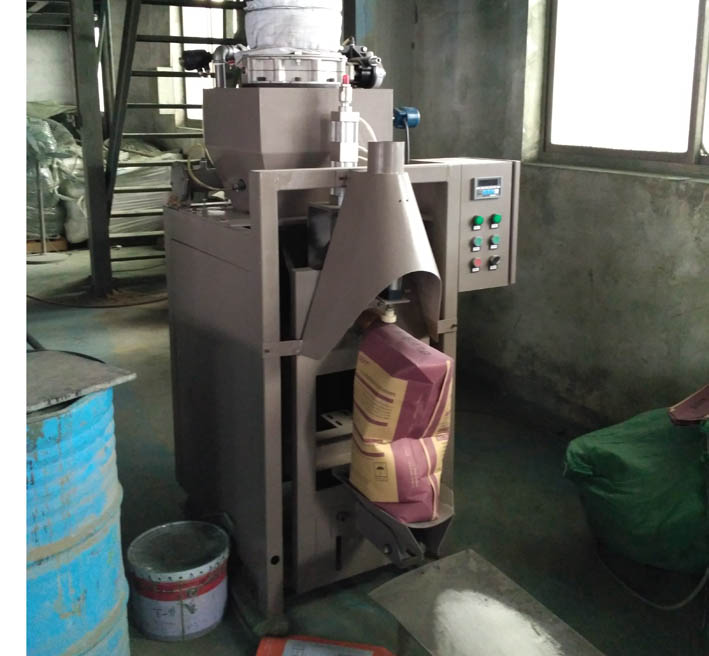

Dry materials are typically illiquid, pneumatic packaging machine uses compressed air as the driving force. Compressed air through the atomizer (air) inside the sealed container of the state flow of material occurs, so as to achieve the effect of the feed conveyor. Pneumatic rubber valve closed by controlling the valve flow area, in order to control packing materials feeding amount, to achieve effective and stable packaging accuracy and speed.
Features:
l Adopt weighing control instrument control measurement, high accuracy, good consistency
l packing speed, accuracy and stability
l less wearing parts, less maintenance, long service life
l Easy operation, long-term use does not leak material
l Package weight: 20kg-50kg
l Packing Accuracy: 200g
l Suitable for large, medium and small ready-mixed mortar stations, dry mortar packaging materials
l Products are single valve port, dual valve port and multi-valve port forms
Model GZM-AI GZM-AII GZM-AIII
Applicable materials good fluidity powder or small particles (≤ 5mm), such as cement powder mortar
Weighing form a single nozzle, double nozzles gross weight, gross weight three nozzles, GW
Packing NW 20 ~ 50Kg
Accuracy 1%
Packing speed 250 ~ 400 bags / hour 350 to 700 bags / hour 500 to 1000 bags / hour
Bag valve bag form
Air pressure 0.5MPa
Working temperature: -20 ℃ ~ 45 ℃ Relative Humidity: 95% (non-condensing)
Supply voltage AC220V 50Hz
Maximum power 0.1KW 0.2 KW 0.3 KW
Air consumption 0.7m3/min 1.4 m3/min 2.1m3/min
Dimensions 650x1270x1600 1300x1270x1600 1300x1270x1600 1950x1270x1600
Equipment weight about 600Kg 1200 Kg 1800 Kg
