30L Oil Filling Machine for Filling Vegetable Oil/Lubricating Oil
2025-04-02 10:23:24
glzon
Introduction

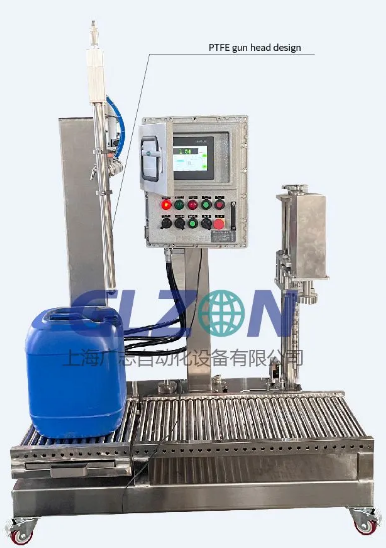

The semi-automatic bucket filling machine, is mainly composed of weighing and filling system, frame, stainlesssteel roller table, capping system, pneumatic control, electrical control and othersystems, so as to realize manual barrel discharge - automatic filling - Manualcapping- automatic capping -finished product storage.
It adopts a gravimetric method to measure, by weighing the sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipping with a pump in the front end of the feeding port, or pressuring the material tanks Sent material from the tank to the filling machine. The filter device can be added before filling to guarantee the quality of products.
It adopts a gravimetric method to measure, by weighing the sensor output signal to control the charging valve opening, so as to realize the purpose of automatic filling. By equipping with a pump in the front end of the feeding port, or pressuring the material tanks Sent material from the tank to the filling machine. The filter device can be added before filling to guarantee the quality of products.
The economical semi-automatic volumetric filler that can be configured to fill a wide variety of container sizes. 1/2 Pint to Pails. Placing a container under the nozzle begins the fill cycle by contacting the no-can-no fill switch. After filling, the container is advanced by the operator to the conveyor. Containers are sealed as they are conveyed through an available roller closer, crimper or press plate.
-
