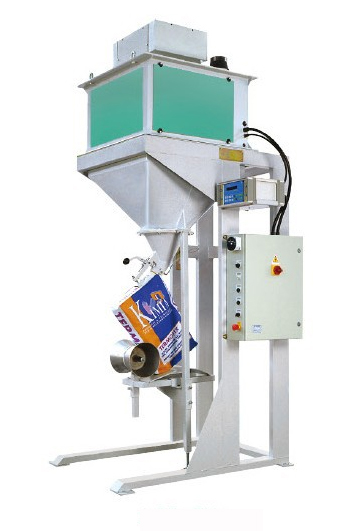

Gravity feed 50kg valve bag granule packing machine manufacturer

Description of granule packing machine:

Main features:

1, automatic computer control, computer intelligent automatic identification, automatic measurement, high sensitivity, stable performance, strong
anti-jamming capability, weighing accuracy;
2, new design, no gate, weighbeam, swim mound, card round, bayonet, extension spring, pull springs and other mechanical weighing mechanism, reducing
the vulnerability of the infinite; not only reduces maintenance costs, and improve productivity;
3, automatically compressed bags, filling, closing, and off bags and other functions, stable performance, simple operation;
4, the body of all sealed and equipped with dust ports, reasonable structure, durable, truly environmentally friendly production;
5, the packaging machine mainly single mouth (GZM-AI), double mouth (GZM-AII) in two models, can be composed by a double mouth tied 4-6 mouth
packaging machine.

Technical parameters:

1, each mouth yield 10-15t / h,

2, bag weight error: ± 0.2kg,

3, heavy bags pass rate: 99%,

4, every mouth power: 0.5kw,
5, a single bag weight: 10-50kg (available upon request to set).

For more information, please check the vedio on Youtube which we uploaded:

https://youtu.be/-op2ZwAezQM

Model No.	CBM-OG-Ⅰ	CBM-OG -Ⅱ	CBM-OG -G
Weighing form	Single hopper, net weight	Double hopper, net weight	None hopper,gross weight
Suitable material	Powder fluid like corn, fertilizer, feedstuff, sugar, plastic grain
Packing net weight	15~50Kg
Accuracy class	0.2
Packing speed	150~360 bag/h	300~700 bag/h	120~300 bag/h
Packing bag form	Open bag
Gas resource pressure	0.6Pa/min
Working environment	temperature:-20℃~45℃ relative humidity:95%
Power voltage	AC220V 50Hz
Wastage	0.05m³/min	0.1m³/min	0.15m³/min
Dimension	2500x2300x3850	2500x2500x4500	1600x2100x2500
weight	600Kg	750Kg	450Kg
