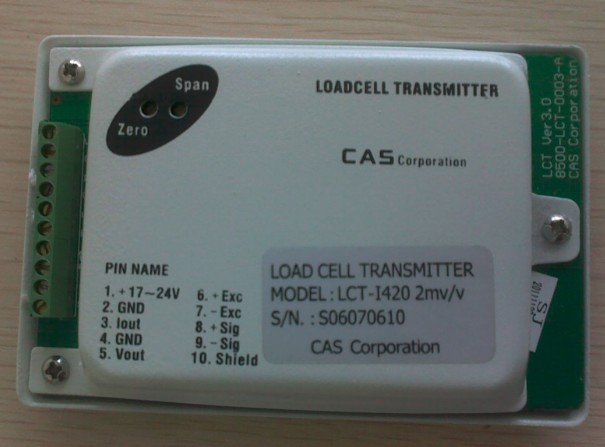

Weight transmitter LCT-I420 LCT-V010 loadcell signal transmitter 4-20mA output

LCT Series is a load cell transmitter and operates on single power source. It is
designed to convert output of load cell and all kinds of strain gauge into output current or
output voltage. It is proper for industrial field and it will meet your demanding
needs.
LCT has a number of output forms.
Feature 1
LCT is a Load Cell transmitter, so you don’t need any other amplifiers.

Feature 2
LCT operates on single power source and built in surge absorber to protect surge from
industrial field.
Feature 3
LCT has a number of output forms. (Voltage : 0~5V, 1~5V, 0~10V
Current : 0~20mA, 4~20mA, 0~40mA )
1. Features
Voltage output
Output range
Output range
Current output
? Voltage Output Transmitter  Current Output Transmitter
Model  LCT-V05, LCT-V15, LCT-V010  LCT-I420, LCT-I020, LCT-I040
Output   0~5V,         1~5V,        0~10V       4~20mA,  0~20mA,  0~40mA
Power  +17~24V    +17~2 4V
Analog Signal Input  1.0, 2.0, 3.0 mV/V   1.0, 2.0, 3.0 mV/V
Input Impedance  ? 1010 ?   ? 1010 ?
Transducer Excitation Voltage  12 V   12 V
Zero Balance  ?10% (R.O)   ?10% (R.O)
Span Balance  ?10% (R.O)   ?10% (R.O)
Nonlinearity  0.02% (F.S)   0.025% (F.S)
Accuracy  0.02% (F.S)   0.025% (F.S)
Operating Temperature  -10 ~ +85 ?C   -10 ~ +85 ?C
Operating Humidity  < 85% R.H   < 85% R.H
Load Resistor  ≥ 1.7 K?   0~500
