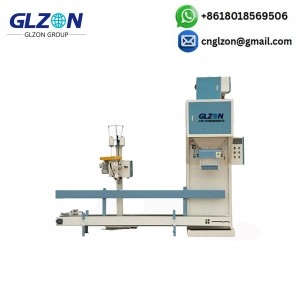

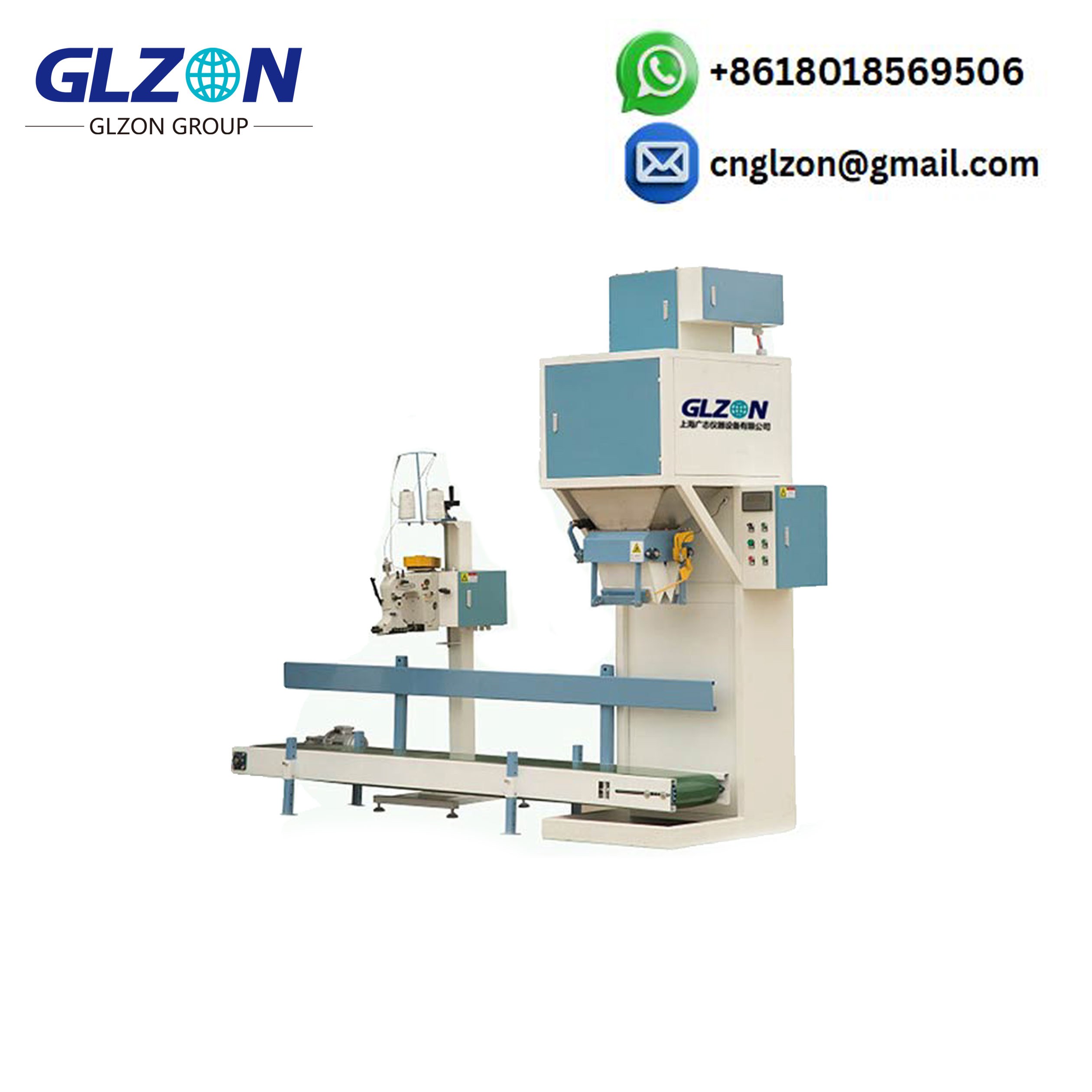

GZM Series Quantitative Packaging Machine

(Model: GZM-50OG-N)

Overview

The GZM Series Quantitative Packaging Machine is a state-of-the-art, fully automatic packaging solution designed for high precision, high speed, and reliable performance. As a leading open mouth bag filling machine, it integrates advanced instrument measurement and PLC control technology, ensuring exceptional weighing accuracy and operational stability. This automatic packaging machine is engineered for user-friendly operation and has earned both the measuring instrument product type approval certificate and the manufacturing license from the quality and technical supervision department, reflecting its superior quality and compliance.

Key Features

• High Weighing Accuracy: Static accuracy ≤ ±0.1%, dynamic accuracy ≤ ±0.2%

• Fast Packaging Speed: 300–420 packages/hour, ideal for high-volume production lines

• Versatile Application: Suitable for a wide range of granular materials, including grains, rice, seeds, fertilizer, feed, plastic particles, and more

• Robust Construction: Stainless steel options available for corrosive materials

• User-Friendly Operation: Simple interface and automated control for easy use and maintenance

• Reliable Performance: Stable operation with advanced pneumatic and sensor systems

• Comprehensive Certification: Fully certified for quality and measurement standards

Structure & Composition

• This advanced packing equipment is composed of:

• Material inlet

• Feeding mechanism (pneumatic gate)

• Weighing hopper

• Bag clamping mechanism

• Frame and air suction port

• Pneumatic system

• High-precision sensor

• Control box

• Conveyor and sewing mechanism

Working Principle

1. Material Feeding: The feeding mechanism delivers material into the weighing hopper.

2. Intelligent Weighing: The controller receives real-time weight signals from the sensor and manages the feeding process in three stages-fast, medium, and slow-to ensure precise filling.

3. Bag Handling: Once the target weight is reached, the bag clamping mechanism secures the bag, and the discharge door opens automatically.

4. Sealing & Conveying: The filled bag is released onto the conveyor, transported to the sewing machine for sealing, and then moved to the next process.

5. Continuous Cycle: The system resets and prepares for the next bag, ensuring uninterrupted, efficient operation.

Scope of Application

The GZM-50OG-N is a versatile open mouth bag filling machine, perfect for:

• Grain Packing Machine: Rice, corn, wheat, beans, sesame, and other grains

• Fertilizer Packing Machine: Fertilizer particles, manure, and chemical granules

• Feed Bagging Equipment: Animal feed, 50kg feed bagging, and related products

• Plastic Packaging Machine: PP, PE, and other plastic particles

• Powder Packing Machine: Flour, spices, and other fine powders

• Industrial & Construction Materials: Inorganic salt, steel, coal, building materials, and more

• Food & Light Industry: Sugar, food granules, and spices

Technical Parameters

Why Choose the GZM Series?

• Open mouth bag filling machines like the GZM-50OG-N deliver unmatched efficiency and accuracy for bulk packaging needs.

• Ideal for rice bag filling machine, grain filling machine, fertilizer bagging machine, and more.

• Supports a wide range of bag types and materials, including woven, plastic, and paper bags.

• Perfect for industries seeking reliable, automated, and high-speed packing machines for granular and powder products.

Whether you need a 50 Kg rice filling machine, a flour packing machine, or a spices packing machine, the GZM Series is your trusted partner for modern, efficient, and precise packaging solutions.
