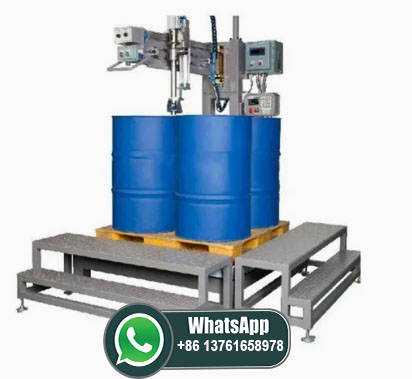

Advanced 200L Automatic Disinfectant Filling Machine for Liquids
2025-04-28 15:02:57
glzon
Basic Info.
Type
Weighing-type Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Single-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Drum Barrel
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Application
Food, Beverages, Daily Necessities, Chemicals
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Filling Accuracy
0.2%
Transport Package
Wood
Specification
7510*2030*2100mm
Trademark
GLZON
Origin
Shanghai
Product Description
10L 30L 50L
200L 1000L 1000L| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
| Filling range(L) | 100-1000L |
| power supply | AC220V 50/60Hz |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed(can/hour) | 30-50 barrels(Depending on the material flow rate) |
| Material | sus304/sus316/carbon steel/PTFE |
| ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable. |
| ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash |
| ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean. |
| ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications. |
| ? Good stability, reduce losses, save costs, improve operating efficiency, and reduce manual operation pressure. |
Features
IBC barrel fully automatic filling line, suitable for 1000L IBC filling
Container loading, manual assisted opening and closing of the lid, and other filling
Barrel supply, positioning, filling, weighing and measuring are all automated
The action is completed.
IBC barrel fully automatic filling line, suitable for 1000L IBC filling
Container loading, manual assisted opening and closing of the lid, and other filling
Barrel supply, positioning, filling, weighing and measuring are all automated
The action is completed.
How to operate
During operation, as long as the empty barrel is installed on the empty barrel pipeline line, it will automatically stop and the
The nozzle device automatically places the empty barrel directly below the nozzle of the nozzle; the nozzle valve automatically lowers into the
After entering the barrel mouth, the empty barrel is automatically tared, and then the specific gravity is determined accurately at two speeds.
bundle, the spray valve automatically connects to the outside of the barrel, enters the full barrel pipeline, and reaches the capping position.
The piping machine stops, the cap is placed manually, the capping machine is pulled down to cap, and the weight is completed.
During operation, as long as the empty barrel is installed on the empty barrel pipeline line, it will automatically stop and the
The nozzle device automatically places the empty barrel directly below the nozzle of the nozzle; the nozzle valve automatically lowers into the
After entering the barrel mouth, the empty barrel is automatically tared, and then the specific gravity is determined accurately at two speeds.
bundle, the spray valve automatically connects to the outside of the barrel, enters the full barrel pipeline, and reaches the capping position.
The piping machine stops, the cap is placed manually, the capping machine is pulled down to cap, and the weight is completed.
Touch screen PLC control
Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy
Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy
Pneumatic filling
Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic
high-tech enterprise located in Songjiang District, Shanghai. This is
Shanghai's large industry and large equipment manufacturing base.
"High excellence and high compatibility" is the manufacturing guideline
of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company
has passed the IS09001 international quality system certification and
IS014001 environmental management system certification. The
mechanical equipment is gradually passing the "CE certification".
Shanghai Guangzhi Specializing in the production of packaging
machinery, customers are welcome to negotiate.
